袋泡茶包裝機系列
YS-40X 高速小顆粒自動包裝機
YS-40X 高速小顆粒自動包裝機
特 點 Characteristic
1、適用于方便面行業湯包,干燥劑,沖劑,碎茶等小顆粒狀物品包裝。
It is suitable for packing instant noodies industry soup bag, desiccant, tea power, small granular material.

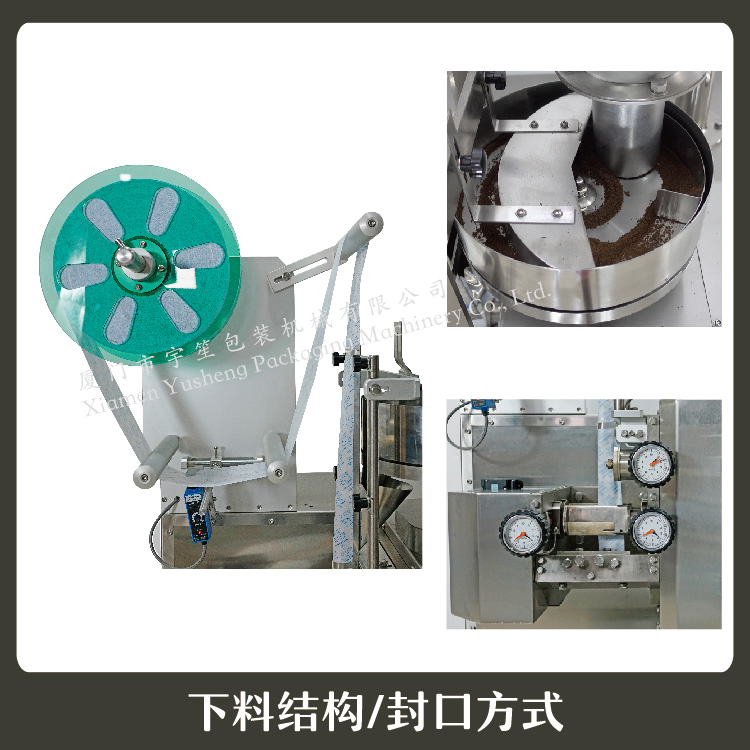

2、可自動完成制袋、計量、充填、封合、分切及計數等功能。
The machine can automatically finish bag making, measuring, filling, sealing, cutting and counting funtion.
3、包裝材料:茶葉濾紙、復合膜、無紡布。
Packing material:filter paper, composite membrane, non-woven fabrics.
封口方式 Sealing Type
三邊封口Three sides sealing
技術參數
Technical Parameters
計量范圍:10 - 40 g
Measuring Scope
制袋尺寸:長 ( L ) : 40 - 110 mm
Bag Size 寬 ( W ) : 30 - 90 mm
包裝速度:30 - 120 bags / min
Packing Speed
外型尺寸:849 * 646 * 1710 mm
Dimension ( L * W * H )
整機重量:350 kg
Weight
總 功 率:AC220V / 50Hz / 1.5kw
Total Power
特 點 Characteristic
1、適用于方便面行業湯包,干燥劑,沖劑,碎茶等小顆粒狀物品包裝。
It is suitable for packing instant noodies industry soup bag, desiccant, tea power, small granular material.
2、可自動完成制袋、計量、充填、封合、分切及計數等功能。
The machine can automatically finish bag making, measuring, filling, sealing, cutting and counting funtion.
3、包裝材料:茶葉濾紙、復合膜、無紡布。
Packing material:filter paper, composite membrane, non-woven fabrics.
封口方式 Sealing Type
三邊封口Three sides sealing
技術參數
Technical Parameters
計量范圍:10 - 40 g
Measuring Scope
制袋尺寸:長 ( L ) : 40 - 110 mm
Bag Size 寬 ( W ) : 30 - 90 mm
包裝速度:30 - 120 bags / min
Packing Speed
外型尺寸:849 * 646 * 1710 mm
Dimension ( L * W * H )
整機重量:350 kg
Weight
總 功 率:AC220V / 50Hz / 1.5kw
Total Power
特 點 Characteristic
1、適用于方便面行業湯包,干燥劑,沖劑,碎茶等小顆粒狀物品包裝。
It is suitable for packing instant noodies industry soup bag, desiccant, tea power, small granular material.
2、可自動完成制袋、計量、充填、封合、分切及計數等功能。
The machine can automatically finish bag making, measuring, filling, sealing, cutting and counting funtion.
3、包裝材料:茶葉濾紙、復合膜、無紡布。
Packing material:filter paper, composite membrane, non-woven fabrics.
1、適用于方便面行業湯包,干燥劑,沖劑,碎茶等小顆粒狀物品包裝。
It is suitable for packing instant noodies industry soup bag, desiccant, tea power, small granular material.
2、可自動完成制袋、計量、充填、封合、分切及計數等功能。
The machine can automatically finish bag making, measuring, filling, sealing, cutting and counting funtion.
3、包裝材料:茶葉濾紙、復合膜、無紡布。
Packing material:filter paper, composite membrane, non-woven fabrics.
技術參數
Technical Parameters
計量范圍:10 - 40 g
Measuring Scope
制袋尺寸:長 ( L ) : 40 - 110 mm
Bag Size 寬 ( W ) : 30 - 90 mm
包裝速度:30 - 120 bags / min
Packing Speed
外型尺寸:849 * 646 * 1710 mm
Dimension ( L * W * H )
整機重量:350 kg
Weight
總 功 率:AC220V / 50Hz / 1.5kw
Total Power
Technical Parameters
計量范圍:10 - 40 g
Measuring Scope
制袋尺寸:長 ( L ) : 40 - 110 mm
Bag Size 寬 ( W ) : 30 - 90 mm
包裝速度:30 - 120 bags / min
Packing Speed
外型尺寸:849 * 646 * 1710 mm
Dimension ( L * W * H )
整機重量:350 kg
Weight
總 功 率:AC220V / 50Hz / 1.5kw
Total Power
適用于方便面行業湯包,干燥劑,沖劑,碎茶等小顆粒狀物品包裝。
